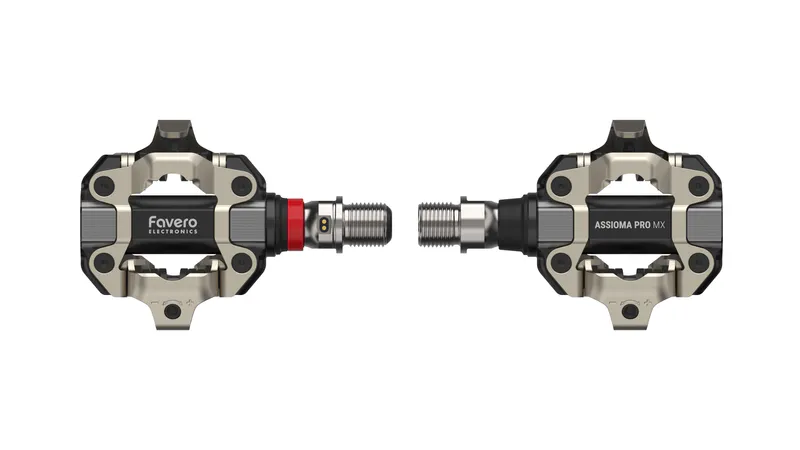

Favero Assioma PRO MX-1 Pedals

Single-sided power meter pedals

Power meter for MTB and gravel with power sensor on the left pedal only.
Upgrade option to PRO MX-2 always available.

The Product

Assioma PRO MX is the revolutionary pedal-based power meter for MTB and gravel 100% SPD® compatible.
You can use it with the cleats provided within the box or with the original Shimano® SM-SH51.
It inherits the reliability and extreme precision of the Favero road power pedals, adding unparalleled
resistance to shocks during your challenges on the trail.

Easy to install and universally compatible

The Favero Assioma PRO MX-1 power meter pedals can be installed and swapped between bikes like any
other pedal: in a few minutes and without special tools or the assistance of a mechanic.
It features both Bluetooth and ANT+ communication channels, which makes it compatible with the majority
of bike computers and smart watches on the market, as well as with the major training apps such as Zwift,
Strava, Bkool, Trainerroad, Rouvy and many others.

A compact spindle to protect the technology

All the electronic components and the integrated rechargeable battery are safely stored within an extremely
compact and resistant spindle.
Those unpleasant inconveniences of battery-related dropouts typical of the replaceable batteries are thus
avoided thanks to the strategic position of the rechargeable battery and the consequent absence of external
electrical contacts.
On top of that, without battery compartments or power ports that can be opened and closed, water, mud,
and dust cannot enter, thus guaranteeing extreme reliability even in adverse weather conditions.
The product is IP67 certified.

Extremely resistant to shocks and impacts

The pedal body in aluminium 6061-T6 is extremely robust and light, ready for all types of terrain.
The clipless system features a surface hardness of up to 800 HV, ensuring that the power meter pedal is as
resistant to shocks as never seen before.

The IAV Power System and the data measured by Assioma PRO MX-1

Thanks to the special IAV Power System, Assioma takes into account our irregular pedaling (e.g., sprints,
climbs) or the use of oval chainrings when calculating power, guaranteeing an accuracy of ±1% in any
situation.

Assioma PRO MX offers extremely comprehensive data reading via ANT+ and Bluetooth.

The available data
• Power
• Cadence
• PCO (Platform Center Offset)
• PP (Power Phase)
• TE (Torque Efficiency)
• PS (Pedal Smoothness)
• RP (Rider Position)

Rechargeable and eco

Assioma PRO MX-1 uses integrated rechargeable batteries: a single charge guarantees at least 60 hours of
use.
Charging takes place via a magnetic system which avoids any problems related to accidental tugging of the
charging cable.

Made in Italy

Favero Electronics produces each power meter in its headquarters in Italy and tests its good functioning
individually through careful laboratory tests, fully satisfying the standards required by current regulations.

Tech Specs

• Pedals for MTB and gravel with power sensor only on the left side
• Weight per power pedal: 191,4 g
• Cadence sensor: included, inbuilt
• Gyroscope: included, inbuilt
• Power calculation system: IAV (Instantaneous Angular Velocity-based)
• Cycling Dynamics: Available
• Data visible via ANT+ or on the Favero Assioma App:
◦ Power
◦ Cadence
◦ PCO
◦ Power Phase (PP)
◦ Pedal Smoothness (PS)
◦ Torque Efficiency (TE)
◦ Rider Position (no App Favero Assioma)
• Data visible via Bluetooth:
◦ Power
◦ Cadence
• Oval-chainrings compatible: yes
• Battery type: rechargeable, litium-ion
• Battery life: at least 60 hours
• Radio communication: ANT+, Bluetooth
• Accuracy power measurement: ± 1%
• Thermal compensation: -10°C / +55°C
• Waterproofness rating: IP67
• Stack height: 11,2 mm
• Compatible cleats:
◦ Provided cleats (art. 773-00-62)
◦ Shimano® SM-SH51cleats
• Bike types: MTB, XC, CX, gravel
• Made in Italy
• Warranty: 2 yrs

Package content

• Left pedal with power sensor
• Right pedal without power sensor
• MTB-compatible SPD® cleats
• 4 Washers
• Magnetic charging connector (2x MX-2 | 1x MX-1)
• 1 Micro USB 2-way charging cable
• 1 Greasing tools kit
• 1 Guarantee and safety manual
• 1 Welcome flyer
